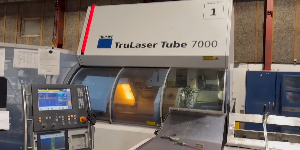

BRUGT CNC-RØR LASER SKÆRER FABR. TRUMPF, MODEL TRULASER TUBE 7000

Working range in X-axis 6500 mm

Infeed 9200 mm

Diameter 200 mm

Magazine feeder 9200 mm

Control:

Sinumerik 840D

Flexible part removal station 4,5 m

NitroLine

FocusLine

SprintLine

Laser power control

Programmable cutting gas pressure

Programm re-entry

Automatic shut-down device

Work area lighting Laser

CO2-Laser TruFlow 2000

Laser logbook function

Chiller Laser Cutting head

Lens cutting head with 155 mm focal length

ControlLine Controller

Teleservice via Internet Data Transfer

RJ45 network connection

USB-Interface Safety

CE marking

Multi-beam light barriers

Compact dust extraction unit 1500 Nm³/h

safety cabin with Macrolon panels Accessories

basic equipment cutting nozzles

1 x ceramic part

Set of clamping jaws D15-200 mm

Extended equipment

Higher powered lasers

Laser TruFlow 3600 incl. LensLine Machine Options

2x Movable conveyor table

Finished part length +1,5 m

Outer circle diameter 250 mm, incl. set of clamping

SeamLine Tube Preparation Automation

LoadMaster Tube 6m with bundle support

2 grippers Options LoadMaster Tube 6m

Outer circle diameter 250mm for LoadMaster Tube 6m

Scratch reduced version bundle support for LoadMaster Tube 6000 mm

Slewable conveyor path scratch reduced for LoadMaster Tube 6000 mm
